Custom straight air intake

Brand Custom
Website -
Part number -

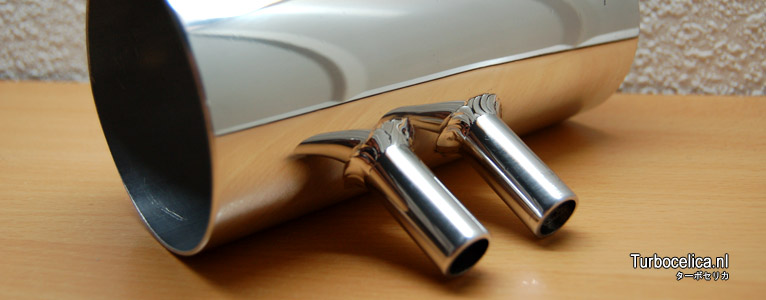

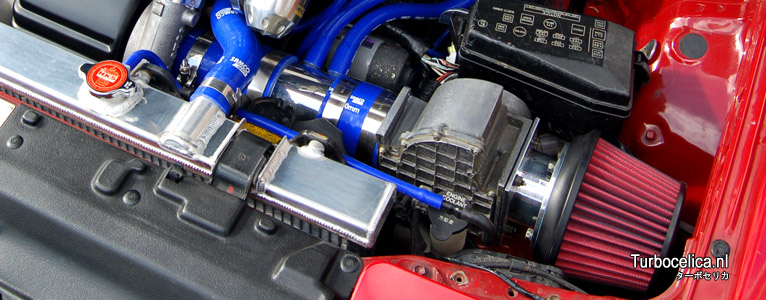

To improve the airflow towards the turbo I made a 80 mm outer diameter (OD) aluminium straight intake. For a stock ST185 setup you need one with connections for the Positive Crankcase Ventilation (PCV) or oil catch tank and one for the Idle Speed Control (ISC) valve.

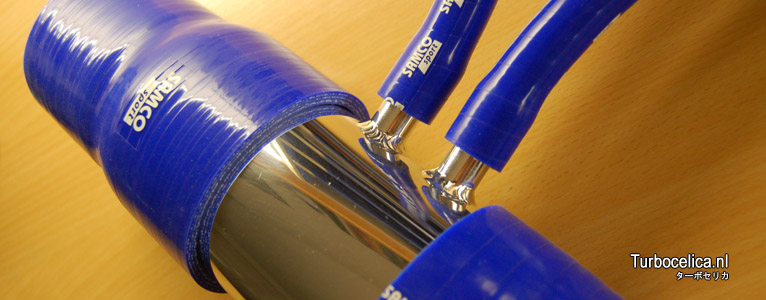

Samco 70 > 80 mm inner diameter (ID) reducer to fit the stock CT26 turbo - 80 mm OD straight intake - 80 mm ID coupler to fit the CS/GrpA Rallye/RC airflow meter (AFM)

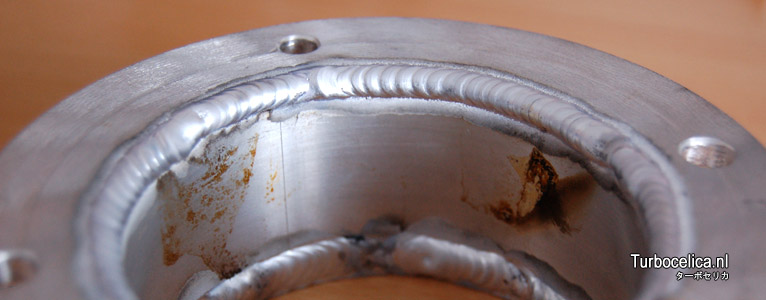

AFM adapter

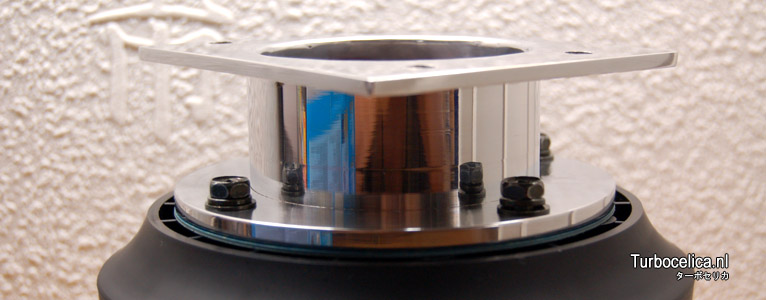

To fit the A'PEXi Power Intake to the larger CS/GrpA Rallye/RC AFM I also made an AFM adapter. Due to the larger inlet, the AFM has a different bolt pattern compared to the normal ST185.





Related links

A'PEXi Power Intake
CS/GrpA Rallye/RC AFM bolt pattern
